JET Hand Stacker Heavy Duty 1 ton to 2 ton

JET Hand Stacker Heavy Duty 1 ton to 2 ton

SKU:OLJE0035

Regular price Rs. 68,145.00
Regular price Sale price Rs. 68,145.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Taxes included. Free Shipping Across India.

✔ GST Invoice Available for Businesses

Capacity & Lifting Height

Estimated Delivery: 5-10 business days

  • Test Certificate Provided
  • Service & Replacement Support
  • 1 year On-site Warranty

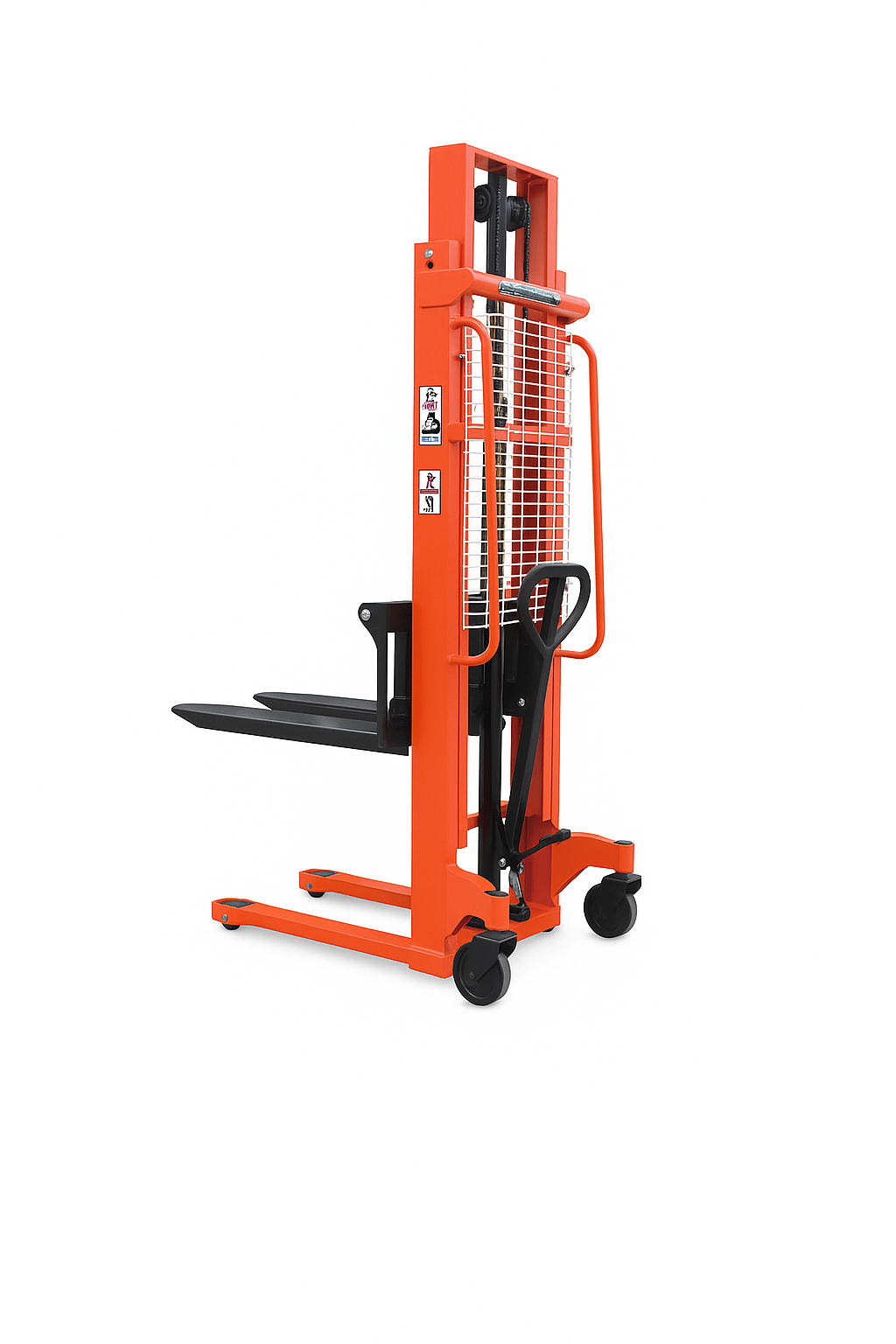

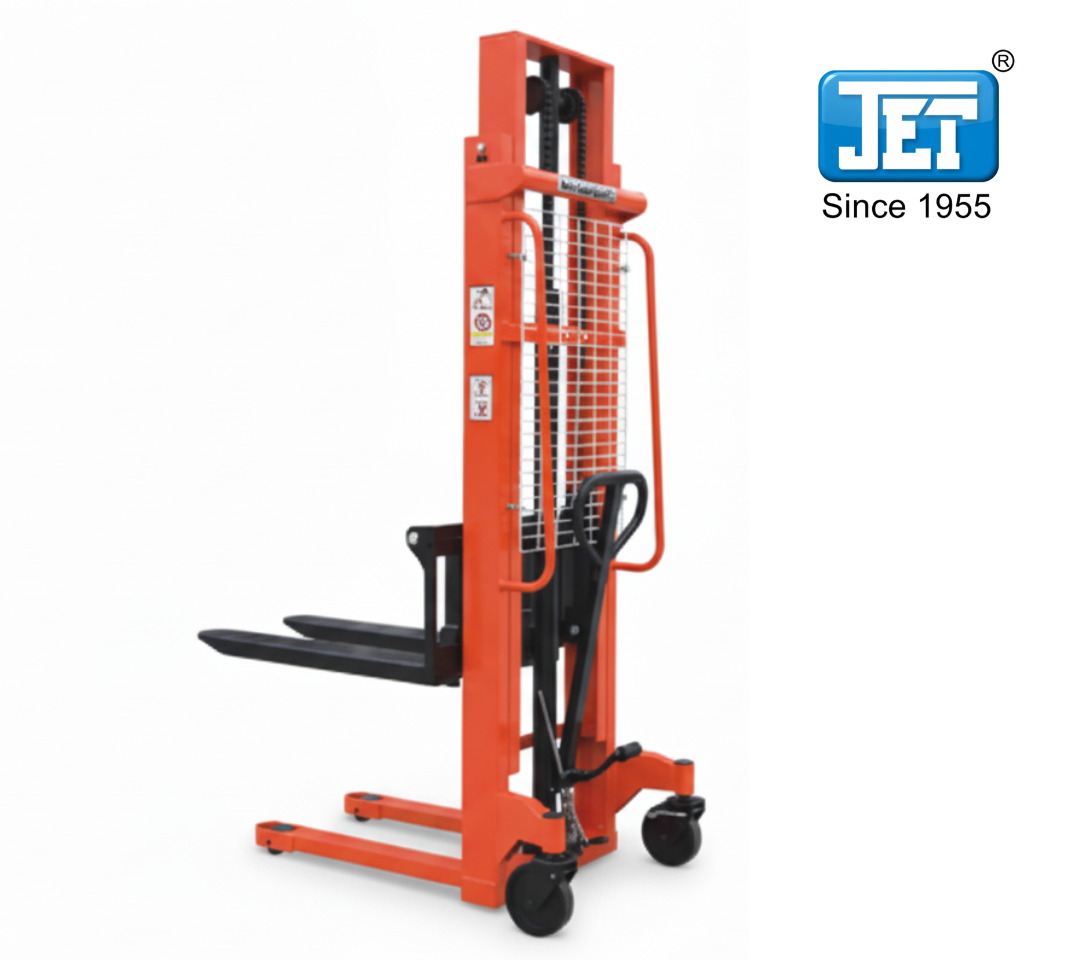

The JET Hand Stacker Heavy Duty is a hand operated hydraulic stacker available from 1 ton up to 2,000 kg capacity, built for industrial environments that require reliable vertical load handling without dependency on electricity. Its heavy-duty reinforced mast and robust steel frame are engineered for continuous use in demanding conditions — factories, steel processing units, and facilities where power access is unreliable.

With multiple capacity and lift height options, the stacker is a flexible, long-lasting solution for serious industrial stacking requirements.

Key Features:

  Available in 1 ton, 1.5 ton, and 2 ton capacity variants

  Manual hydraulic operation — works anywhere, no power required

  Heavy-duty reinforced mast for stable, safe vertical load handling

  Straddle legs provide a broad, secure base during lift operations

  Multiple lift height options to match your storage configuration

  Robust steel construction for continuous industrial use

  Brand: JET | Power Source: Hand Operated

  1-year on-site warranty

Specs Unit OLST-1016 OLST-1020 OLST-1025 OLST-1030
Capacity Kg 1000 1000 1000 1000
Lifting Height (H) mm 1600 2000 2500 3000
Fork Length (L) mm 1000 1150 1150 1150
Fork Width (E) min-max mm 300 – 840 300 – 840 300 – 840 310 – 840
Load Center (C) mm 400 400 400 400
Overall Length (A) mm 1560 1560 1560 1560
Overall Width (B) mm 950 950 950 950
Overall Height (H1) mm 2100 1510 1810 2080
Front Wheel mm 80 80 80 80
Rear Wheel mm 180 180 180 180
Turning Radius (R) mm 1400 1400 1400 1400
Net Weight (Approx.) Kg 263 270 270 345



Specs Unit OLST-1516 OLST-1520 OLST-1525 OLST-1530 OLST-2016
Capacity Kg 1500 1500 1500 1500 2000
Lifting Height (H) mm 1600 2000 2500 3000 1600
Fork Length (L) mm 1000 1000 1150 1000 1150
Fork Width (E) min-max mm 300 – 840 300 – 840 300 – 840 300 – 840 300-840
Load Center (C) mm 400 400 400 400 400
Overall Length (A) mm 1560 1560 1560 1560 1560
Overall Width (B) mm 950 950 950 950 950
Overall Height (H1) mm 2100 1510 1810 2080 2100
Front Wheel mm 80 80 80 80 80
Rear Wheel mm 180 180 180 180 180
Turning Radius (R) mm 1400 1400 1400 1400 1400



Country of Origin: China
