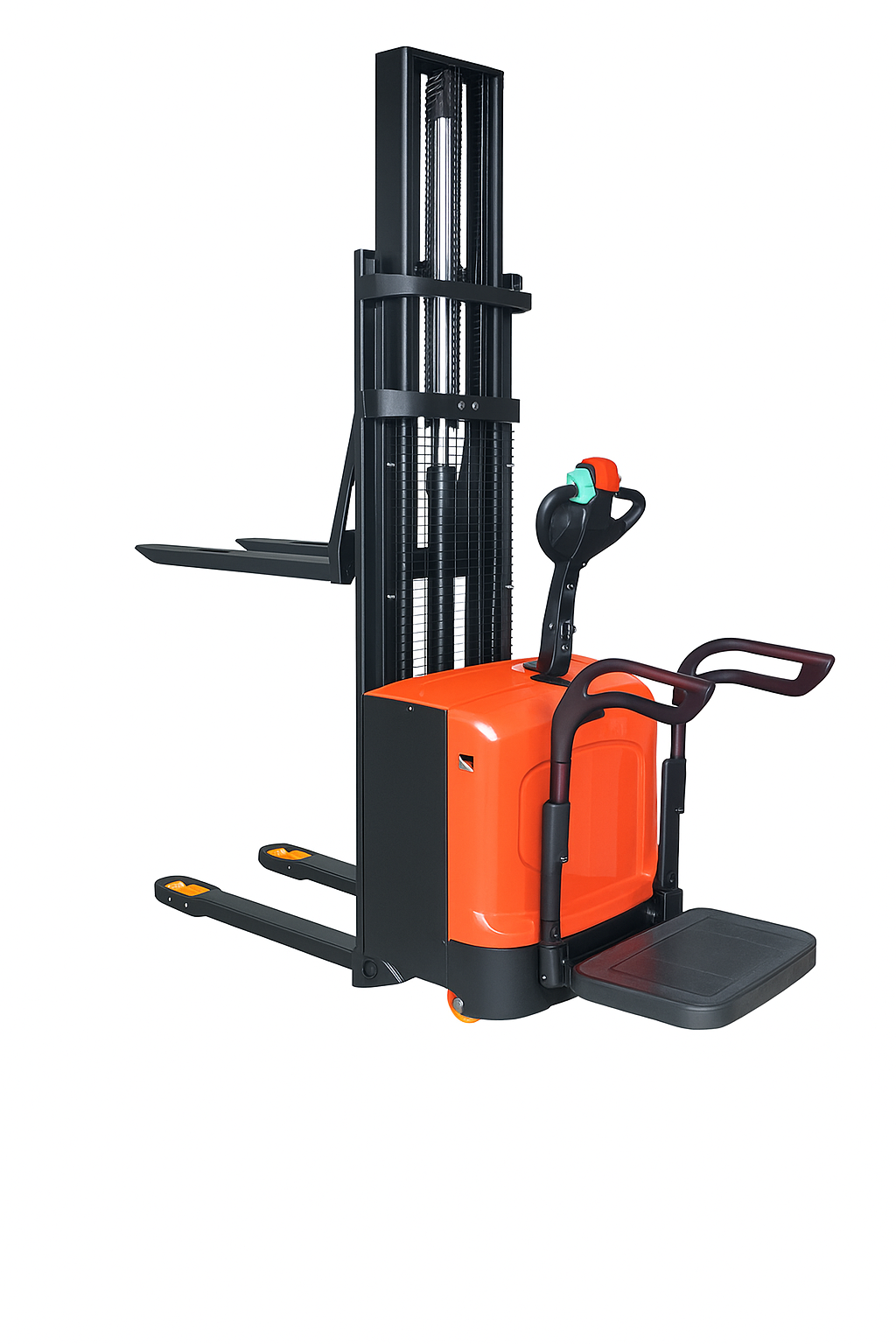

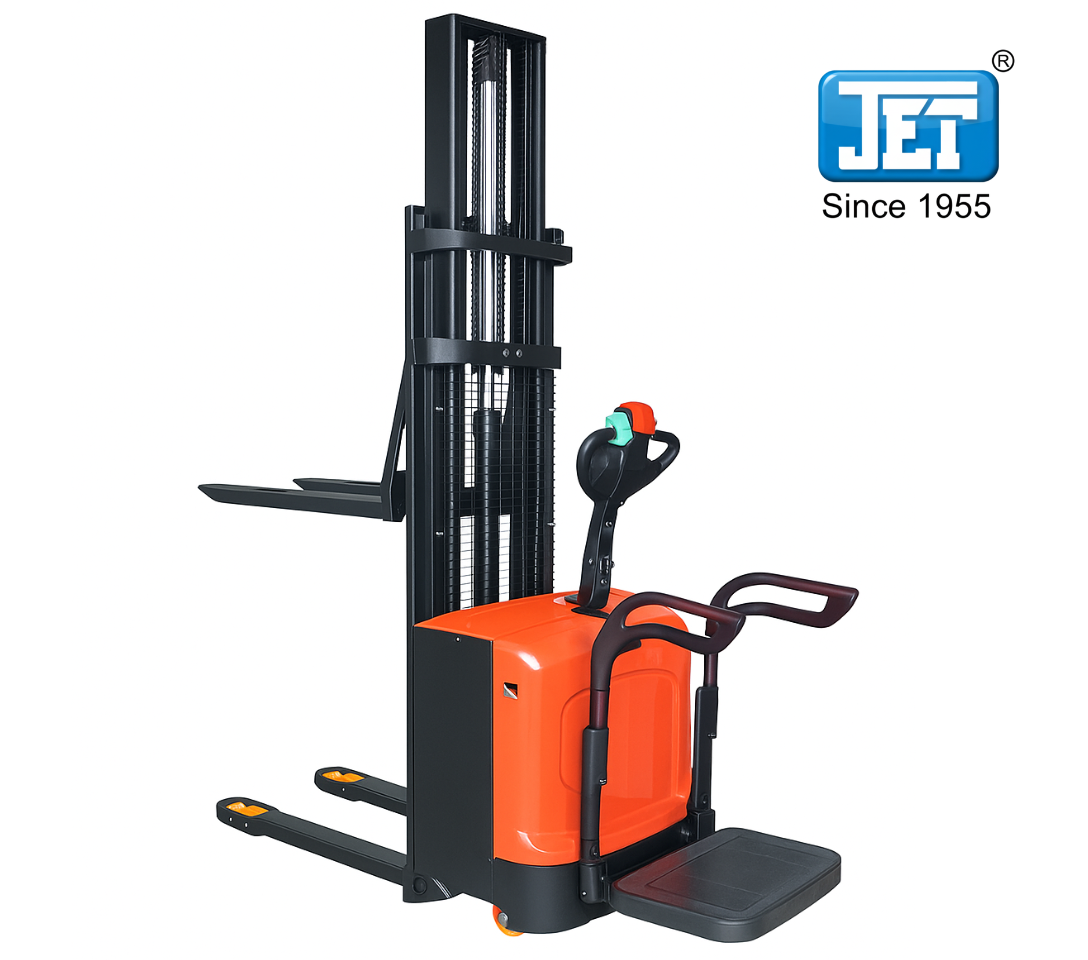

JET Electric Stacker Heavy-Duty 1 ton to 2 ton
JET Electric Stacker Heavy-Duty 1 ton to 2 ton
SKU:OLJE0065
✔ GST Invoice Available for Businesses
Estimated Delivery: 5-10 business days
Couldn't load pickup availability
- Test Certificate Provided
- Service & Replacement Support
- 1 year On-site Warranty
The JET Electric Stacker Heavy Duty is a fully self-propelled, high-capacity electric stacker engineered for large warehouses, steel yards, automotive plants, and industrial logistics operations that move heavy loads to elevated racking positions throughout the working day. Both the drive and the mast lift are fully electric, removing all manual effort from the stacking process.
As the top of the JET stacker range, the OLBDST is built for operations where light-duty and semi-electric equipment are simply not adequate for the job.
Key Features:
• High load capacity for heavy industrial stacking applications
• Fully electric — self-propelled drive and powered mast lift
• Heavy-duty reinforced steel mast for safe operation at height
• Ergonomic operator controls for fatigue-free long-shift use
• Multiple lift height configurations for high-bay racking systems
• Built-in safety features — load backrest, horn, emergency stop
• Brand: JET | Power: Fully Electric
• 1-year on-site warranty
| Specs | Unit | OLBDST-10.20 |
OLBDST- 10.25 |
OLBDST- 10.30 |
OLBDST- 10.35 |
OLBDST- 10.40 |
OLBDST- 10.45 |
OLBDST- 10.50 |
|---|---|---|---|---|---|---|---|---|
| Rated Capacity | Kg | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Lifting Height | mm | 2000 | 2500 | 3000 | 3500 | 600 | 600 | 600 |
| Load Center | mm | 400 | 400 | 400 | 400 | 4000 | 4500 | 5000 |
| Max Machine Height | mm | 2560 | 3060 | 3560 | 4060 | 4560 | 5060 | 5560 |
| Handle Height | mm | 1450–1460 | 1450–1460 | 1450–1460 | 1450–1460 | 1450–1460 | 1450–1460 | 1450–1460 |
| Fork Size | mm | 1150×160 | 1150×160 | 1150×160 | 1150×160 | 1150×180 | 1150×180 | 1150×180 |
| Width Over Forks | mm | 570 | 570 | 570 | 570 | 680 | 680 | 680 |
| Turning Radius | mm | 1620 | 1620 | 1620 | 1620 | 1900 | 1900 | 1900 |
| Front Wheel Distance | mm | 339 | 339 | 339 | 339 | 370 | 370 | 370 |
| Battery | - | 12×2/210 | 12×2/210 | 12×2/210 | 12×2/210 | 12×2/240 | 12×2/240 | 12×2/240 |
| Charger | V/A | 24/30-40 | 24/30-40 | 24/30-40 | 24/30-40 | 24/20-30 | 24/20-30 | 24/20-30 |
| Overall Length | mm | 2000 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 |
| Overall Width | mm | 860 | 860 | 860 | 860 | 890 | 890 | 890 |
| Overall Height | mm | 1580 | 1830 | 2080 | 2330 | 1920 | 2085 | 2250 |
| Specs | Unit |
OLBDST- 15.20 |
OLBDST- 15.25 |
OLBDST- 15.30 |
OLBDST- 15.35 |
OLBDST- 15.40 |
OLBDST- 15.45 |
OLBDST- 15.50 |
|---|---|---|---|---|---|---|---|---|
| Rated Capacity | Kg | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Lifting Height | mm | 2000 | 2500 | 3000 | 3500 | 600 | 600 | 600 |
| Load Center | mm | 400 | 400 | 400 | 400 | 4000 | 4500 | 5000 |
| Max Machine Height | mm | 2560 | 3060 | 3560 | 4060 | 4560 | 5060 | 5560 |
| Fork Size | mm | 1150×160 | 1150×160 | 1150×160 | 1150×160 | 1150×180 | 1150×180 | 1150×180 |
| Width Over Forks | mm | 570 | 570 | 570 | 570 | 680 | 680 | 680 |
| Wheel Base | mm | 1340 | 1340 | 1340 | 1340 | 1500 | 1500 | 1500 |
| Front Wheel Distance | mm | 339 | 339 | 339 | 339 | 370 | 370 | 370 |
| Battery | - | 12×2/210 | 12×2/210 | 12×2/210 | 24×210 | 12×2/240 | 12×2/240 | 12×2/240 |
| Charger | V/A | 24/30-40 | 24/30-40 | 24/30-40 | 24/30-40 | 24/20-30 | 24/20-30 | 24/20-30 |
| Overall Length | mm | 2000 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 |
| Overall Width | mm | 860 | 860 | 860 | 860 | 890 | 890 | 890 |
| Overall Height | mm | 1580 | 1830 | 2080 | 2330 | 1920 | 2085 | 2250 |
Country of Origin: China
