JET Semi Electric Stacker (1 ton - 2 ton) – Tech Mech Handling Equipments

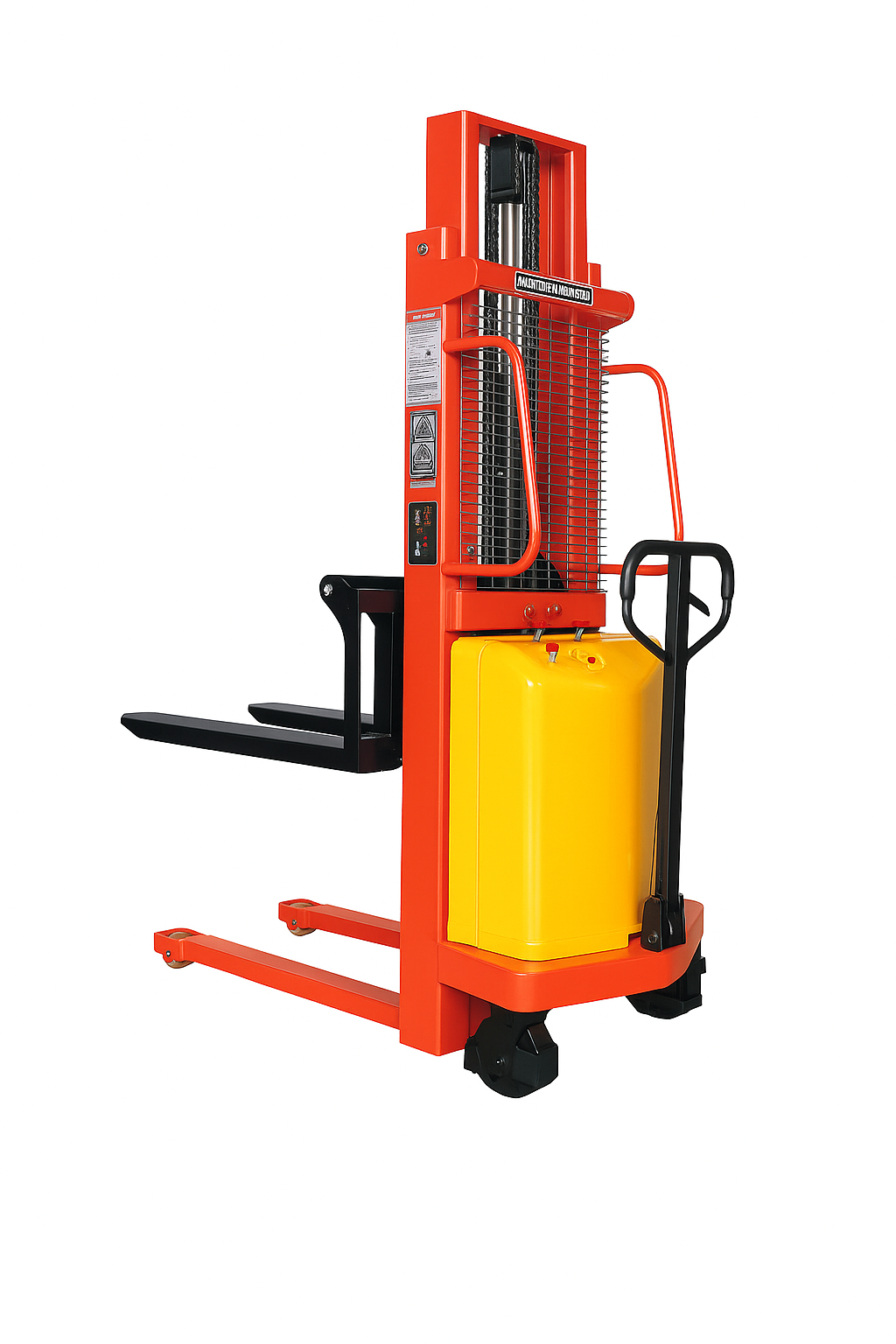

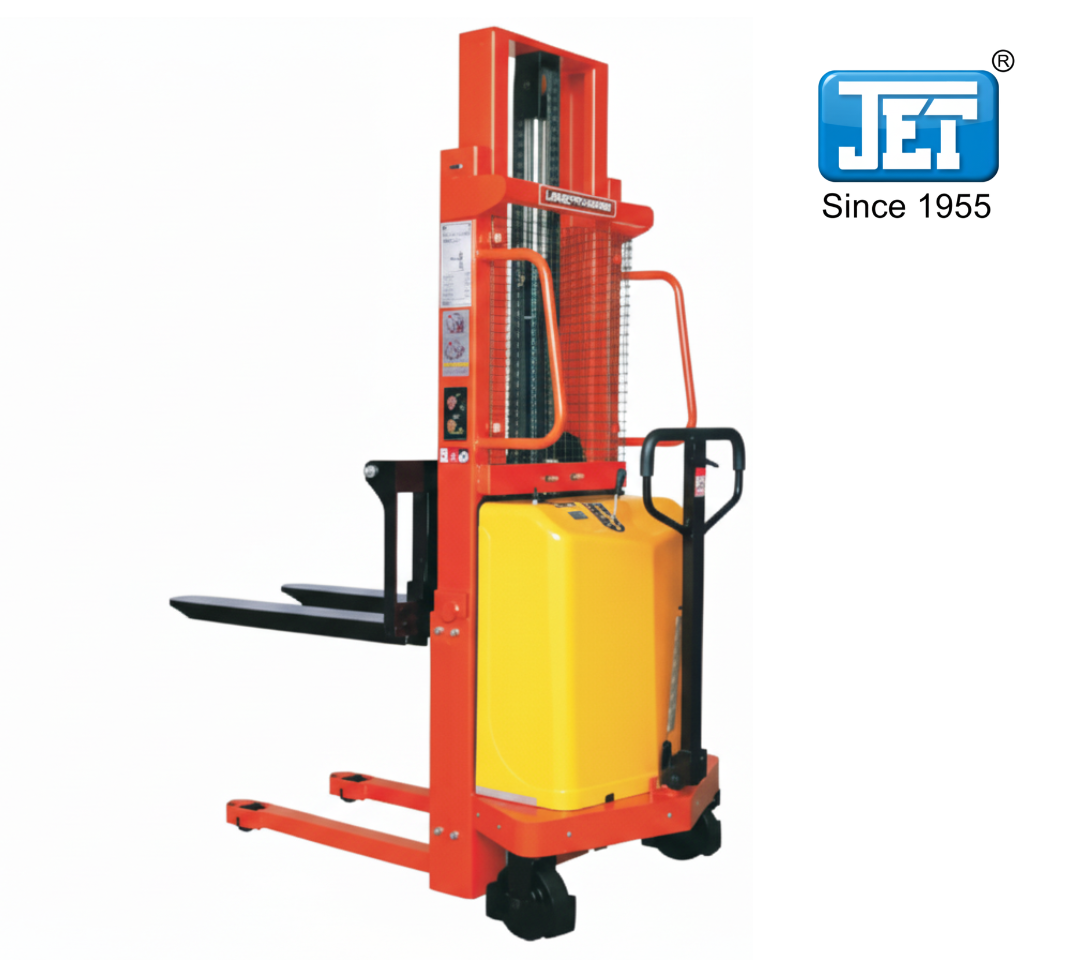

The JET Semi Electric Stacker is a multi-capacity battery-lift, manually driven stacker available in 1 ton, 1.5 ton, and 2 ton variants — making it one of the most versatile stacking solutions. The electric mast handles all lifting and lowering, while the operator guides the machine by hand, giving full control over speed, direction, and load placement.

With multiple lift height configurations available, the stacker adapts to different racking layouts and load requirements across warehouses, manufacturing units, cold storage, and logistics operations.

Key Features:

• Available in 1 ton, 1.5 ton, and 2 ton capacity variants

• Battery-powered electric mast for smooth, effortless lifting

• Manual drive for precise control over load placement

• Multiple lift height options to match your racking configuration

• Straddle legs provide a wide, stable base during load elevation

• Rechargeable battery with full-shift operating range

• Brand: JET | Power: Semi Electric

• 1-year on-site warranty

Specs	Unit	OLBST-10.20	OLBST-10.25	OLBST-10.30	OLBST-10.35	OLBST-10.40
Capacity	Kg	1000	1000	1000	1000	1000
Lifting Height (H)	mm	2000	2500	3000	3500	4000
Fork Length	mm	1150	1150	1150	1150	1150
Fork Width	mm	310-820	310-820	310-850	310-820	310-680
Load Center	mm	400	400	400	400	400
Min Turning Radius	mm	1350	1350	1450	1450	1450
Overall Length	mm	1670	1670	1700	1700	1800
Overall Width	mm	810	810	930	930	930
Overall Height	mm	1580	1830	2080	2330	2580
Lowering Speed Unloaded	m/s	0.14	0.14	0.14	0.14	0.14
Wheels	-	Nylon	Nylon	Nylon	Nylon	Nylon
Battery	-	EXIDE \| AMRON	EXIDE \| AMRON	EXIDE \| AMRON	EXIDE \| AMRON	EXIDE \| AMRON

Specification	Unit	OLBST-15.16	OLBST-15.20	OLBST-15.25	OLBST-15.30	OLBST-15.35	OLBST-15.40
Capacity	Kg	1500	1500	1500	1500	1500	1500
Lifting Height (H)	mm	1600	2000	2500	3000	3500	4000
Fork Length	mm	1150	1150	1150	1150	1150	1150
Fork Width	mm	300-850	310-820	310-820	310-820	310-820	310-680
Load Center	mm	400	400	400	400	400	400
Min Turning Radius	mm	1350	1350	1350	1450	1450	1450
Lifting Motor	V/Kw	12/1.5-1.6	12/1.5-1.6	12/1.5-1.6	12/1.5-1.6	12/1.5-1.6	12/1.5-1.6
Overall Length	mm	1660	1670	1670	1700	1700	1800
Overall Width	mm	865	810	810	930	930	930
Overall Height	mm	2060	1580	1830	2080	2330	2580
Wheels	-	Nylon	Nylon	Nylon	Nylon	Nylon	Nylon
Battery	-	EXIDE \| AMRON	EXIDE \| AMRON	EXIDE \| AMRON	EXIDE \| AMRON	EXIDE \| AMRON	EXIDE \| AMRON
